MAINTENANCE AND CARE
Introduction

This manual introduces the B, C, L, Z series engine use and precautions, engine maintenance. Onlystrict compliance with the use and maintenance specifications, it can ensure the normal use of the engine.Please read this manual carefully before using the engine.Use fuel oil, lubricating oil and coolant that meetthe requirements of the specification in accordance with the technical specifications.When replacementparts are required, it is recommended that Cummins genuine accessories must be used.



During operation, the following engine conditions should be paid close attention to.If any item appearssuddenly, it is likely to be a sign of trouble, please check and repair it in time

  • Poor engine start or stop
  • Underpower
  • Abnormal vibration
  • High oil consumption
  • Abnormal noise
  • High fuel consumption
  • Heavy exhaust smoke
  • Fuel, oil or water leakage
  • Sudden change of working pressure and temperature
Add coolant correctly

The coolant should not be added too quickly, otherwise the air in the engine water jacket is not easyto discharge, resulting in the engine running temperature is too high.

After the coolant is full filled, shut down for inspection after thermal engine, and refilluntil the coolantis full filled.

If the engine is equipped with an intercooler, the air release valve on the water cooler must be openedduring refueling.



Specification Color Ambienttemperature Proportion Pondushydrogeniivalue
-50 Blue -50 1.070~1.060 7.5~9
-40 Blue -40 1.060~1,055 7.5~9
-35 Blue -35 1.055~1.050 7.5~9
-30 Blue -30 1.050~1.040 7.5~9
-20 Blue -20 1.030~1.035 7.5~9
-10 Blue -10 1.020~1.025 7.5~9



Remind

Notes to users that the coolant must beadded as required, otherwise the enginewill be damaged.



Warning

The engine cooling system must be filledwith long-term organic coolant.Ethylene glycol or propylene glycol.



Reminder

Replacement cycle of rust-proof antifreezing solution is two years.

In winter, must check the concentration of rust-proof antifreezing solution.

The cooling system of the used engine should be cleaned before using rust-proof antifreezing solution.

It is strictly prohibited to use water instead of rust-proof antifreezing solution.

Important maintenance content assist of engine
Item Technical requirements Maintenance period Range of application
Change engine oil CH-4 400 hours, 4 months(whichever comes first) Whole series engine
Change engine oil filter designated brand 400 hours,4 months(whichever comes first) Whole series engine
Change fuel filter designated brand 400 hours, 4 months(whichever comes first) Whole series engine
Change cooling liquid Long-acting organic 2000 hours, 24 months(whichever comes first) C/L/Z series engine
Change cooling liquid Long-acting organicor inorganic 2000 hours, 24 months(whichever comes first) B/D series engine
Air filter designated brand Clean up every 100 hours and replaceevery 500 hours (cycle halved in harshconditions, such as high temperature,dustiness and damp) Whole series engine
Routine maintenance
Routine inspection item
  • Lubricants oil level
    Use standard engine oil on normal oil level
  • Coolant liquid level
    Use long acting organic coolant at normal level
  • Driving belt and fan
    Check whether there are abnormal conditions such as interference, damage, etc.
  • Draw off the water from oil-water separator
    Check the filter for impurity and moisture removal
  • Equtpment appeararice (including line connection)
    Check whether there are abnormal conatons such as learage. peeing. detormation, etc.
  • Air intake system
    Check whether there are abnormal conditions such as leakage. peeling. deformation, etd
  • Crankcase breather/exhaust system
    Check the pipeline for leakage, looseness and other abnormal conditions
Periodic replacement item
  • Oil change
    100/400/800 (every 400 hours or 4 months) periodic replacement
  • Oil change/fuel filter
    100/400/800 (every 400 hours or 4 months)periodic replacement
  • Replace thermostat
    1200 hours replacement
periodic inspection item
  • Air cleaner
    100/400/800 (every 400 hours or 4 months) periodic inspection
  • Air intake system
    100/400/800 (every 400 hours or 4 months) periodic inspection
  • Intercooler
    100/400/800 (every 400 hours or 4 months) periodic inspection
  • Storage battery, cable and connector
    100/400/800 (every 400 hours or 4 months) periodic inspection
  • Valve clearance
    100/400/800 (every 400 hours or 4 months)periodic inspection
  • Fan wheel and bolt
    800/1600(every 800 hours or 8 months)periodic inspection
  • Belt tensioner and belt tension
    800/1600(every 800 hours or 8 months)periodic inspection
  • Cylinder head bolt
    B00/1600 (every 800 hours or 8 months) periodic inspection and fastening
  • Radiatdr and hose pipe
    2000 hours or 20 months periodic inspection and fastening
  • Shock absorber
    2000 hours or 20 months periodic inspection and fastening
Maintenance specifications(daily check)

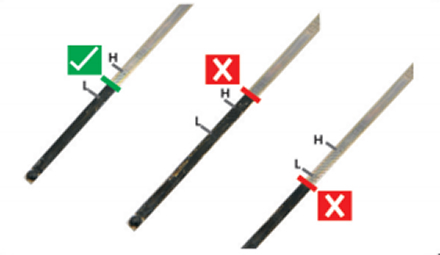

Check oillevel

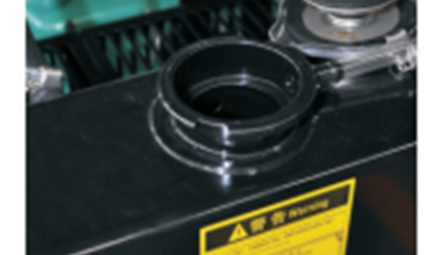

Check coolant level

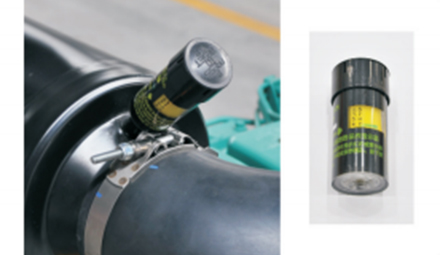

Check air filter resistanceindicator

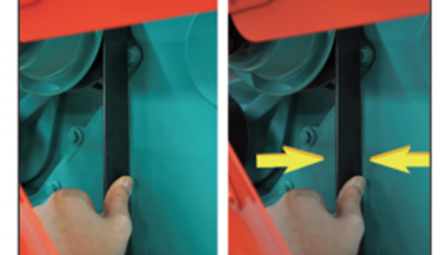

Check whether the drive beltis damaged and adjust thetension

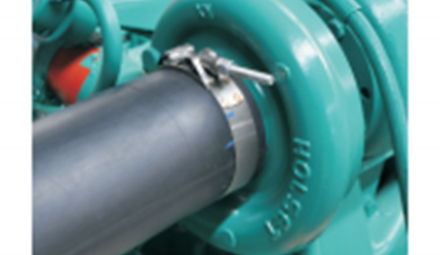

Check the admission linefor any pipeline damageor loose clamp

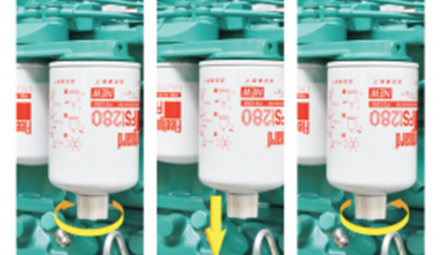

Drain the water from fuel/waterseparator until clean fuel isseen
Maintenance specifications (every 400 hours or 6 months)

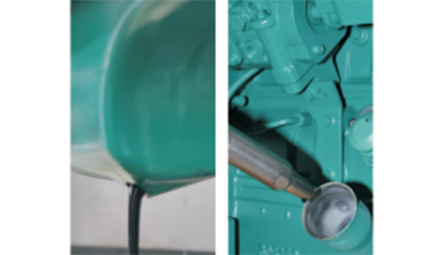

Change engine oil

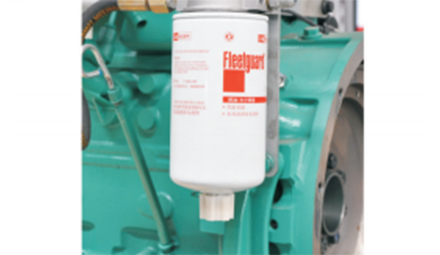

Change oil-water separator and fuel filter

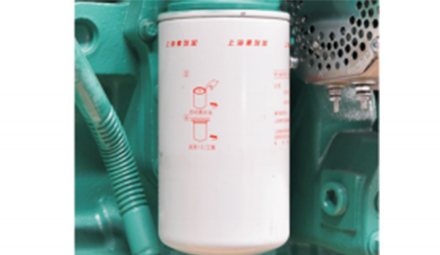

Change engine oil filter
Replace the primary fuel filter
Lubricating oil

It is recommended to be Cummins original diesel engine oil above CH-4 level using for Cummins engine and above diesel engine oil (Cummins original engine oil above Cl-4 level using for electroniccontrol engine)



Lubricating oil
